# Reverse Trendnet TS-S402 firmware

## Downloading the firmware from the vendor webpage

First, we need to download the firmware from the vendor webpage. I downloaded the 2015 version:

```
wget http://downloads.trendnet.com/TS-S402/firmware/FW_TS-S402(2.00.13).zip
```

{% embed url="<http://downloads.trendnet.com/TS-S402/firmware/>" %}

![](/files/-MYoer5xPchqGLHvFdU2)

Next, unzip the firmware file:

```
unzip FW_TS-S402\(2.00.13\).zip
```

![](/files/-MYofPWtqPjqhFOAdhja)

## Inspecting the binary files

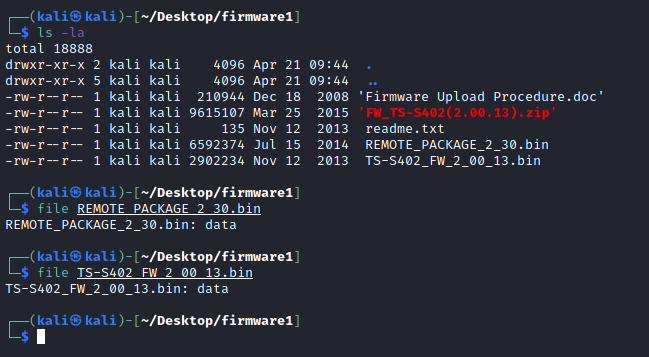

Using **file** command we can get some information from the firmware binary files:

```
file REMOTE_PACKAGE_2_30.bin
file TS-S402_FW_2_00_13.bin
```

![](/files/-MYofquhIpsUYNFe7h6d)

Or not :face\_with\_symbols\_over\_mouth:&#x20;

![](/files/-MYogAKjZRwoI-y1Q14n)

Let's using binwalk - our best friend :sunglasses:&#x20;

```
binwalk TS-S402_FW_2_00_13.bin
```

![](/files/-MYogY8YVwjEMXgZjDMx)

We can observe a lot of LZMA data, however, we got an interesting gzip compressed file as well. From this point, we can use the **-x option to ignore LZMA compression** and extract only the gzip file. Something like this:

{% hint style="success" %}
binwalk **-ex lzma** TS-S402\_FW\_2\_00\_13.bin

-**e:** extraction option\
\&#xNAN;**-x:** ignore option<br>
{% endhint %}

![](/files/-MYohT3oaQ_htfJYAw9N)

Accessing the \_TS-S402-FW\... folder, we can observe two files:

![](/files/-MYoi8JKW1Z9-gjit1Bf)

```
file 20
20: POSIX tar archive (GNU)
```

Ok, **20** file is another compressed file. Let's renaming it and unarchiving it.

```
mv 20 20.tar
tar -xvf 20.tar
```

![](/files/-MYoiVZ4nnyyO2PuhJ0V)

Yeah dude, it was a strong journey! :sunglasses:&#x20;

## Mount the filesystem

```
mkdir sqsh
sudo mount rootfs.armeb.squashfs ./sqsh/ -t squash fs -o loop
```

If you got an error, don't worry about that!

![](/files/-MYomBEsMuf4x4I8nvbW)

If we look at the hexadecimal, we can see the file format:

```
cat rootfs.armeb.squashfs | xxd | less
```

![](/files/-MYoo0BdtTwIe_MG90sS)

**Install**: <https://github.com/devttys0/sasquatch>

and

```
./sasquatch rootfs.armeb.squashfs
ls
```

## References

{% embed url="<http://www.devttys0.com/2011/08/extracting-non-standard-squashfs-images/>" %}

{% embed url="<https://github.com/project-magpie/jffs2dump>" %}
