Prevent Windows shutdown after license expire

Issue

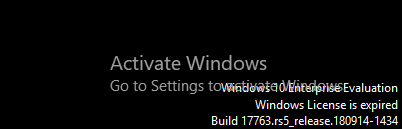

After Windows license expires, you will see a similar message as shown below and then VM will auto shutdown every hour.

Investigation

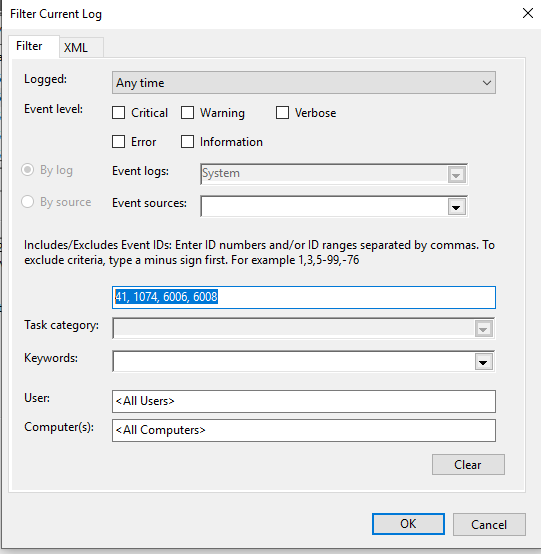

As always, I started my investigation from Event logs. Since we are going to troubleshoot shutdowns, we need to filter messages in logs that are related to restarts. Easiest way to do so is to filter by respective Event Ids. In this case I chose to filter logs by following event ids : 41, 1074, 6006, 6008 as shown below :

A Brief explanation of Event Ids

Event ID 41: The system rebooted without cleanly shutting down first. This error occurs when the system stopped responding, crashed, or lost power unexpectedly.
Event ID 1074: Logged when an app (such as Windows Update) causes the system to restart, or when a user initiates a restart or shutdown.
Event ID 6006: Logged as a clean shutdown. It gives the message, “The Event log service was stopped.
Event ID 6008: Logged as a dirty shutdown. It gives the message, “The previous system shutdown at time on date was unexpected

After applying the filters you will see list of events corresponding to event ids.

Now that we have filtered the events, i decided to look into events that occurred around the time VM rebooted which was around 9:50am

In the General section of the above came across below information :

The process C:\Windows\system32\wlms\wlms.exe (TEST2) has initiated the shutdown of computer TEST2 on behalf of user NT AUTHORITY\SYSTEM for the following reason: Other (Planned)
Reason Code: 0x80000000

From the above message it was clear that wlms.exe initiated the reboot.

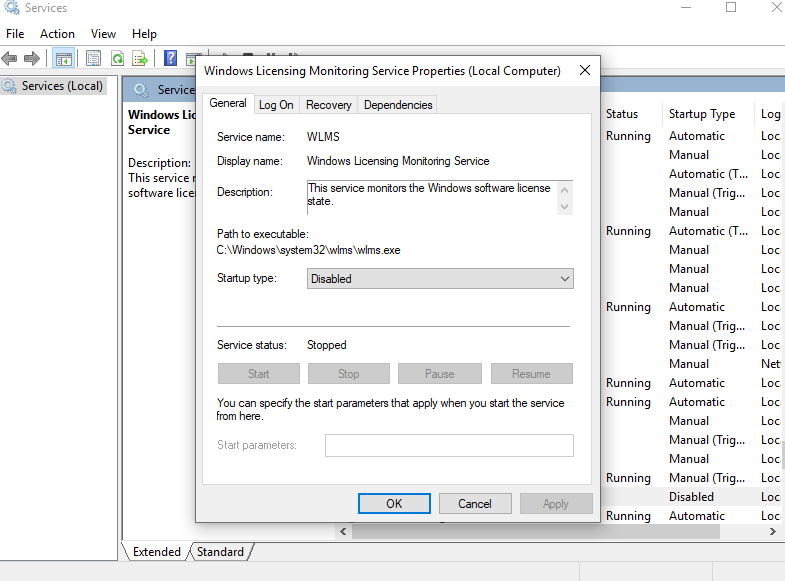

Next, I opened up task manager and looked for wlms.exe, on further investigation wlms.exe took me straight to WLMS service. WLMS stands for Windows License Monitoring Service and it is installed by default on all Windows Evaluation versions.
